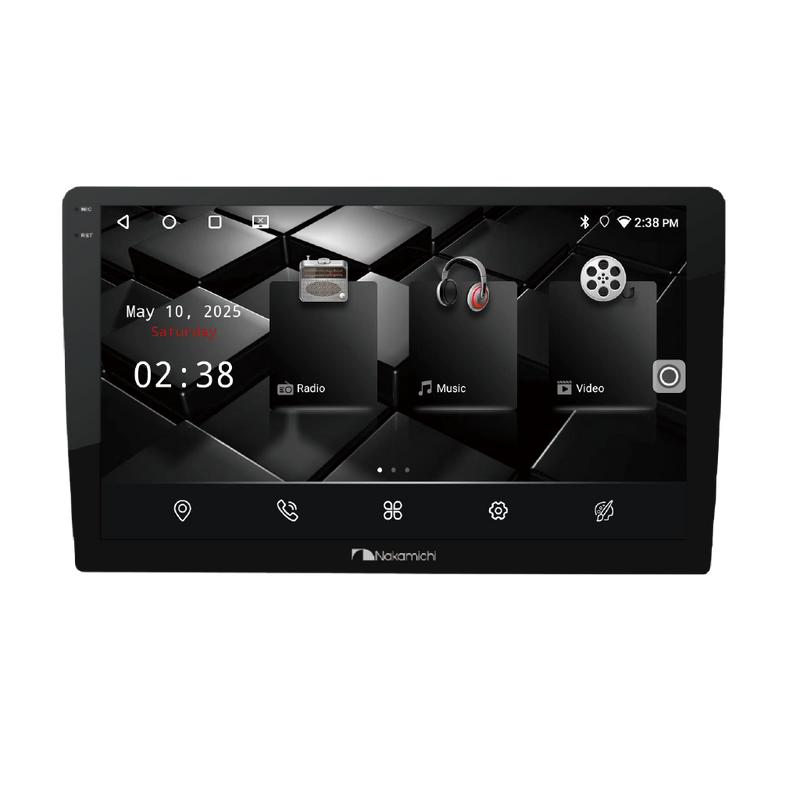

Nakamichi NAM5260 PRO

Description:

HD Android Receiver

Specification:

General:

• Operation Voltage: 14.4V (10.5 - 16V)
• Installation Size: Thickness: 42mm
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -20°C ~ +70°C
• Net Weight: 9", 748g / 10", 851g

System:

• Operating system: NK13.0
• DDR: 2GB (Optional: 4G)
• Flash: 32GB (Optional: 64GB )

Audio:

• Max Power: 4 x 50W
• Front Output (V):  1V / 10KΩ
• Pre-output Impedance: ≤600Ω
• Speakers Impedance: 4 - 8Ω

TFT Screen ltem:

• Size: 9.0" / 10.1"
• Display Resolution: 1280 x 720
• Contrast Ratio: 500
• Brightness: 500nit

Radio:

• FM Frequency Range: 87.5 - 108.0MHZ
• MW Frequency Range: 522 - 1620KHZ

Bluetooth:

• Communication System: BT4.2 + EDR
• Output: BT Standard Power 2 Class
• Max Communication Range: 5m
• Frequency Band: 2.4GHz

USB Interface:

• USB: Readable / Chargeable ( 5 ± 0.25V / 1A)

Video:

• External Video Input System: NTSC / PAL / SECAM
• External Video Input: 1VP - P / 75Ω

Video Format:

• H264 / MP4 / AVI / MKV / FLV

Audio Format:

• MP3 / APE / AAC / FLAC
