Nakamichi NA3600M


Nakamichi NA3600M, our DVD 2 DIN receiver with build in Android mirrorlink for ease of access with your mobile phone and is compatible with a wide array of CD and DVD formats such as DVD/VCD/MP3/MP4/CD-R/CD-RW/DIVX.

Supports both FM/AM radio channels as well as RDS for receiving important traffic updates while you are on the road.

Of course, not forgetting Bluetooth input, for hands free calling, as well as streaming your high resolution music files through to your vehicle's sound system.

Built in 10 band EQ adjustment and preset EQs lets you adjust the sound to match your style of music, so you'll never sound out of tune.



  • 2-DIN 6.75” full glass capacitive screen with DVD player
  • Compatible with DVD/ VCD/ MP3/ MP4/ CD-R/ CD-RW/ DIVX
  • Built-in Bluetooth, support A2DP Bluetooth music
  • Touch screen with GUI (Graphic User Interface)
  • Support USB for music, image and video files
  • Built-in radio receiver, support RDS receiver
  • Built-in amplifier, maximum power 4x50W
  • Support certain Android phone Mirrorlink
  • Support 1080P video playback
  • With wireless remote control
  • Support rear MIC interface
  • Support 1A phone charging
  • Front-view camera input
  • Rear-view camera input

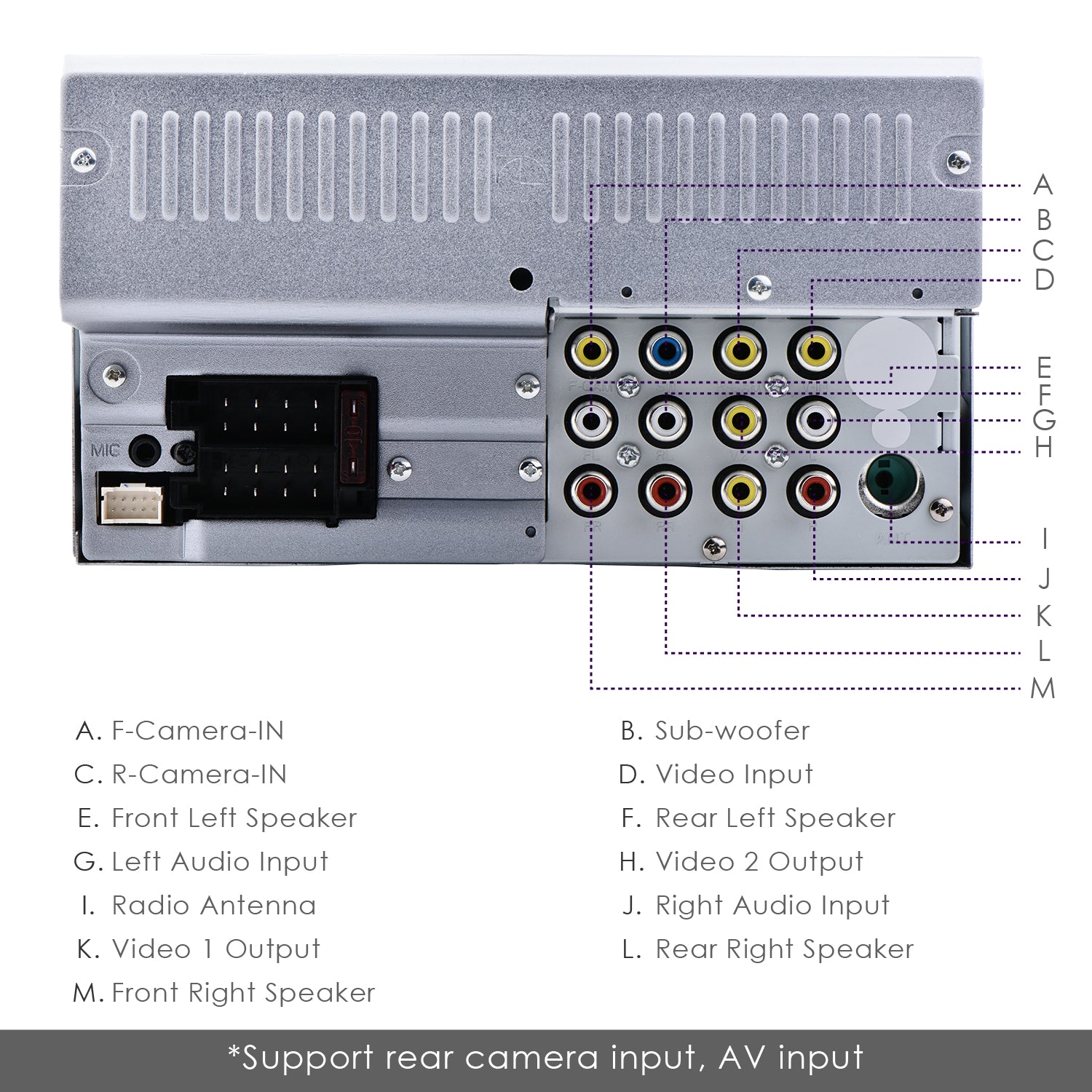

  • 4V FL/ FR/ RL/ RR preoutput
  • 3V subwoofer output
  • Two video output
  • One A/V input
  • Resolution: 800x480
  • Operated power: DC 10.8V-16V
  • Product size: 178*100*152mm

Detailed Specifications


Operation Voltage DC 10.8V-16V
Product Size 178x100x152mm(WxHxD)
Panel Size 170x96mm
Operation Temperature -10℃ - +70℃
Storage Temperature -20℃ - +80℃
Net Weight 1.92kg


Screen Size 6.75"
Touch Panel Capacitive
Resolution 800 x 480 RGB
Brightness 400cd/m2
Contrast Ratio 500
LED Backlight Yes
Customizable GUI Yes
Key Illumination Color Blue
Dimmer Setting Normal / off
Multilingual Display Yes
Wallpaper Replacement Yes
Brightness Control Yes


Max Power 4x50W
RMS Power 4x25W
Pre-output 4V
Subwoofer Output 3V
Subwoofer ON/OFF Yes
Subwoofer Volume Control No
Speaker Impedance 4-8Ω
EQ 10 band
Preset EQ Standard/Classic/Rock/Pop/Jazz/Electric/Custom
Sound Response Yes

Radio Tuner

Preset Stations 30(FM:18ch, AM:12ch)
Frequency Range 87.5-108.0MHZ
Frequency Range 522-1620KHZ
Automatic Presetting Yes


Front Camera Input Yes
Rear Camera Input Yes
RCA Input Yes
Aux Input No


Version+EDR V4.0
Frequency Band 2.4G
Max Communication Range 5m
Compatible Bluetooth Protocol HFP/HSP/A2DP/AVRCP
Hands Free Call Yes
Auto Pairing for IOS/Android Yes


NA3600M  User Manual
