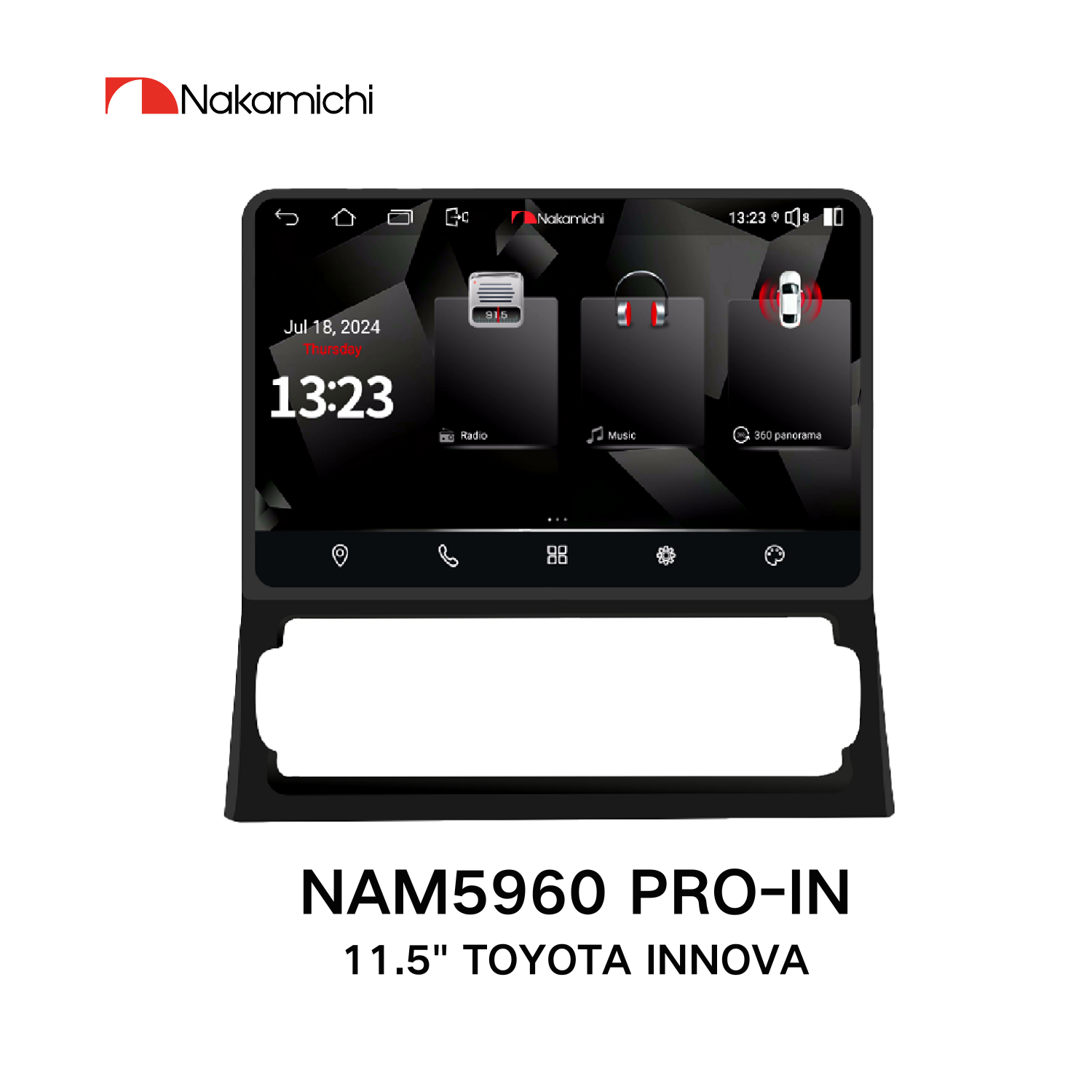

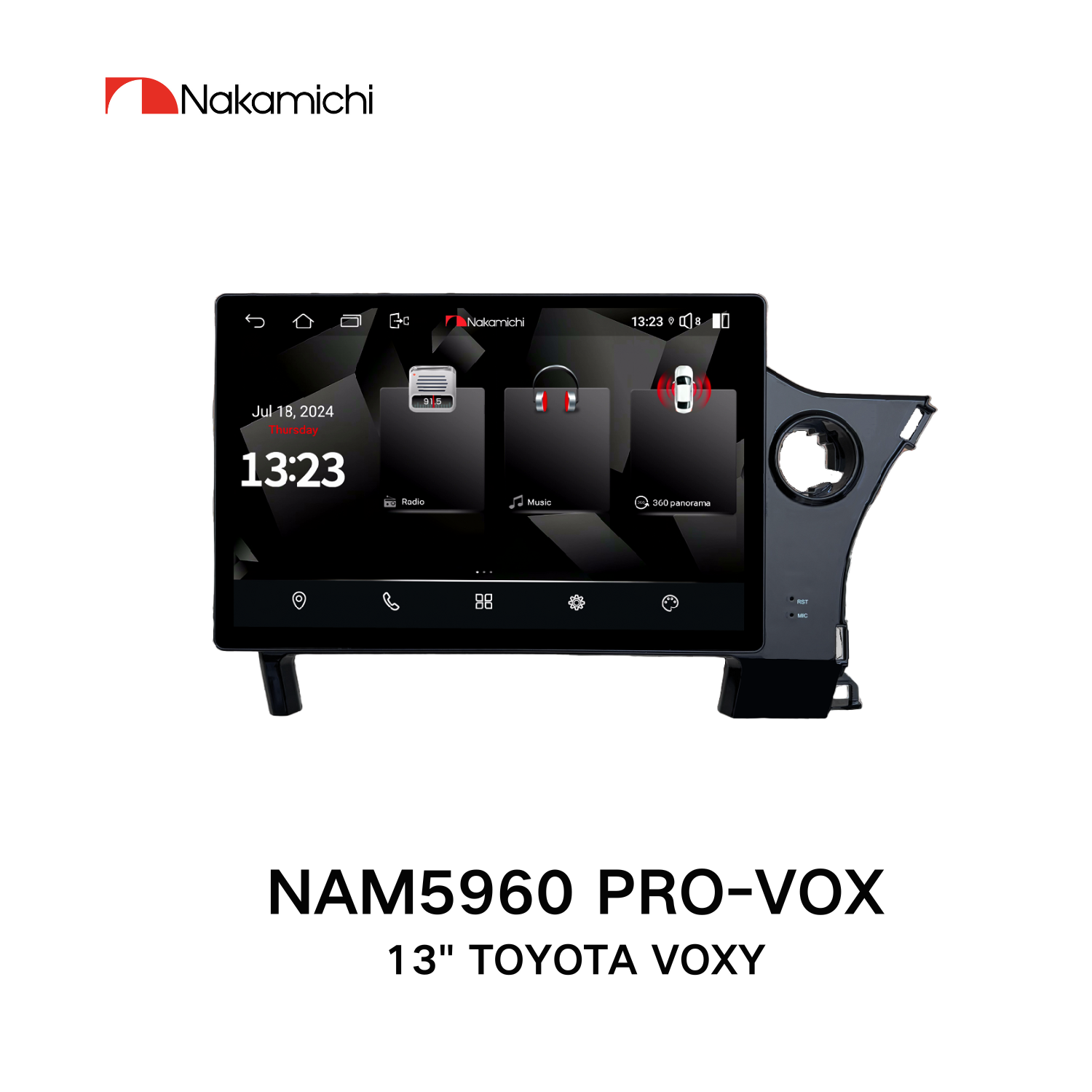

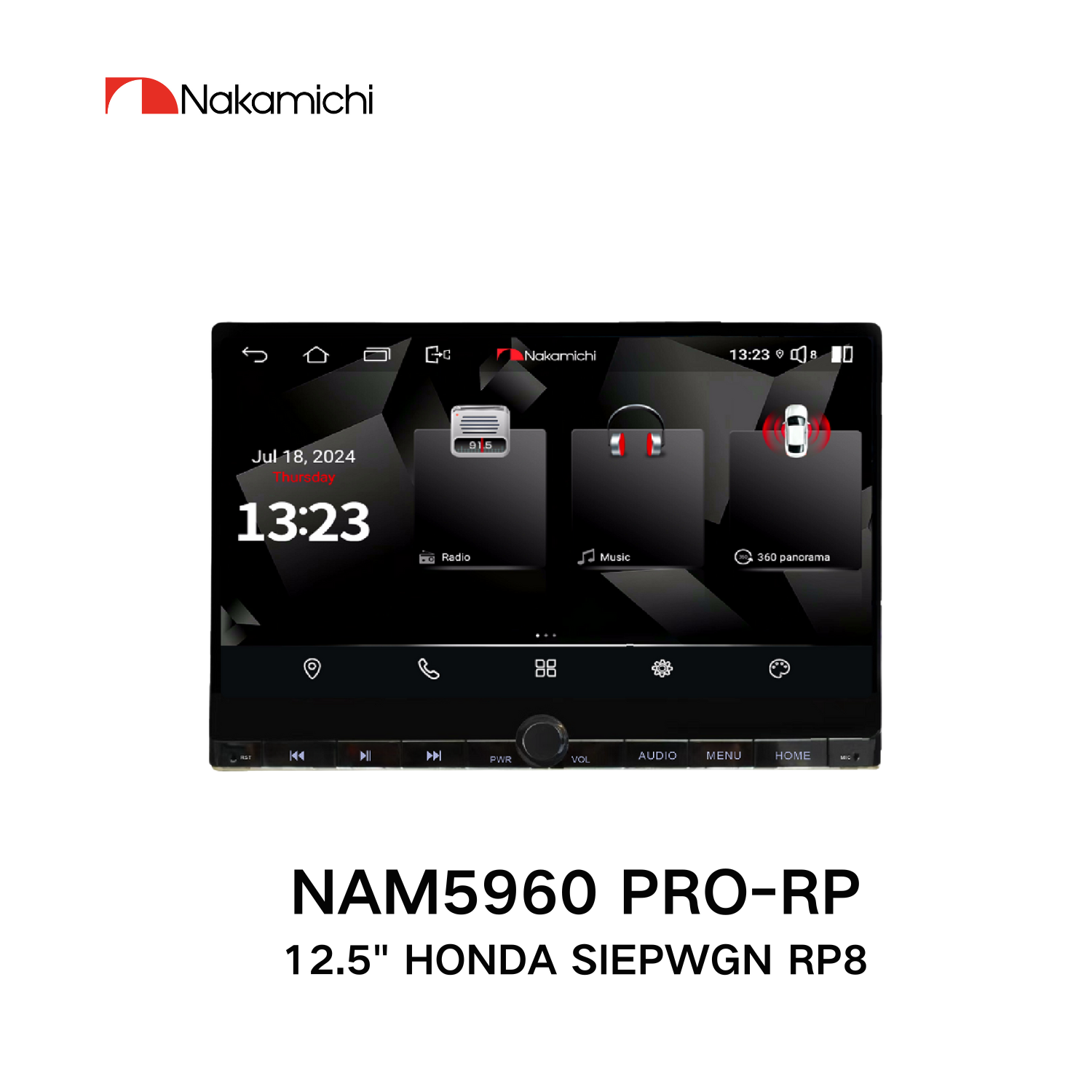

Nakamichi NAM5960 PRO Series
SPECIFICATION:
GENERAL:
| Operation Voltage |
14.4V(10.5-16V) |
| Installation Size |
Thickness : 42mm |
| Operating Temperature |
-10℃ - +60℃ |
| Storage Temperature |
-20℃ - +70℃ |
| Unit Dimensions(WxHxD) |
455x235x105mm |
| Net Weight |
1.5kg |
| Gross Weight |
2.8kg |
SYSTEM:
| Operating System |
13.0 |
| DDR+FLASH |
4+64GB | 8+128GB | 8+256GB |
RADIO:
| FM Frequency Range |
87.5MHz - 108.0MHz |
| MW Frequency Range |
522KHZ - 1620KHz |
BLUETOOTH:
| Communication System |
Bluetooth 5.0+EDR |
Output
|
BT Standard Power 9 dbm |
| Max Communication |
15m |
| Frequency Band |
2.4GHz |
USB INTERFACE:
| USB |
Readable/Chargeable(5±0.25V/1A) |
AUDIO:
| Max Power |
4 x 50W |
| Front Output(V) |
4V/10KΩ |
| Pre-output Impedance |
≤600Ω |
| Speaker Impedance |
4 - 8 Ω |
TFT Screen Item:
| Size |
11.5" |
| Display Resolution |
2000 x 1200 |
| Contrast Ratio |
500 |
| Brightness |
500nit |
VIDEO:
| External Video Input System |
NTSC/PAL/SECAM |
| External Video Input |
1 VP - P / 75 Ω |
VIDEO FORMAT:
| Codec Support |
H264 / H265 / MP4 / AVI / MKV / FLV |
| Video Capture Support |
2160P 30FPS / 1080P 120FPS / 720P 240FPS |
AUDIO FORMAT:
| DSD / MP3 / APE / AAC / FLAC |
WI-FI:
| Standad |
802.11a / b / g / n / AC |
| Spectral Band |
2.4 GHz / 5 GHz |
