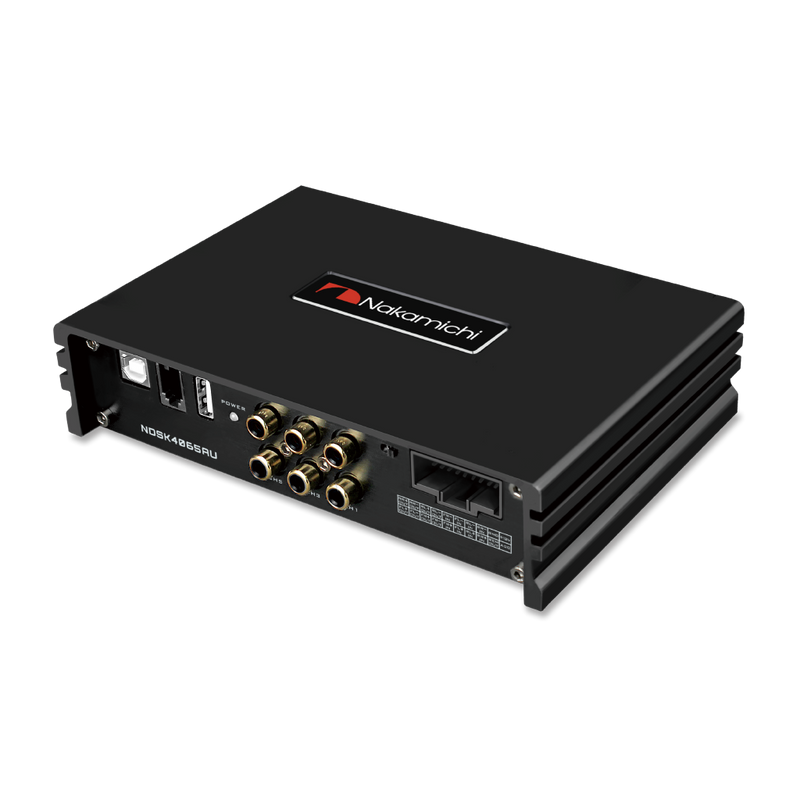

Nakamichi NDSK4065AU

PRODUCT TECHNLLOGY DATA

Dynamic Range(RCA Input)	≥100dB
S/N(RCA Input)	≥90dB
Frequency Response	20Hz~20KHz
Input Impedance	High Level Input:240Ω
Low level Output Impedeance	≤100Ω
Signal Input	RCA Input:8Vpp;High Level:26Vpp
Output Range	RCA Output:12Vpp;Amplifier:4×60W
Power	DC9V-16V
REM Input	High Level Input Signal:FL+/FL-or ACC control cable
REM Output	+12V Startup Voltage Output
Standby Power	≤0.1W
Gross Weight	Approx. 0.7kg
Box Dimension(L×H×W)	174.5×120×40mm

Input Signal Type	4 Channel high level,supports internal Bluetooth and USB music playback
Output Type	6 Channels low level,4 Channels 60W power
Output Gain	Gain range:Mute,-59dB~6dB
Output Signal EQ	15-band EQ for every channel, 1.Frequency Range:20Hz~20KHz,1Hz Accuracy 2.Q value(Slope):0.404~28.85 3.Gain:-12.0dB~+12.0dB,0.1dB Accuracy
Output Signal Crossover	Equipped with high and low pass filters. 1.Professional filter type:Butter-W, Bessel,Link-Rill 2.Filtering Crossover Point: 20Hz~20kHz, Resolution 1Hz 3.Filter Slope setup:6dB/Oct ~ 24dB/Oct
Output Phase and Time Alignment	Adjust phase and time alignment for every output channel : In Phase or Out Phase(0°-180°); Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 273 inch.
Presets	Save 6 presets into the device.
