Nakamichi NSE-1617

Description

Our Nakamichi NSE-1617 speaker is our most popular coaxial speaker series, providing its owners with an excellent price to performance ratio.

With our unique tweeter designed by our in house sound engineer to help deliver better highs, allowing the higher frequency notes to travel further.

Our polypropylene cone helps to withstand extreme temperatures, long hours of usage, and is also designed to provide a consistent sound throughout it's lifespan. Polypropylene does not absorb humidity and thus is not prone to rot even in long periods of storage.

Features

Specifications

  • Speaker Type: 6” (15.8cm) 4-way
  • Mounting Depth: >1.8'' (45mm)
  • N-Power: 20W
  • Peak Power: 400W
  • Sensitivity (dB/W/m): 86 ±3dB
  • Frequency Response: 85-20kHZ
  • Impedance: 4Ω
  • Voice Coil: ASV 25.5mm
  • Magnet Mass: 5.15Oz (146g)
  • Net Weight: Approx. 1kg



What's In The Box

  1. NSE-1617 x 1pr

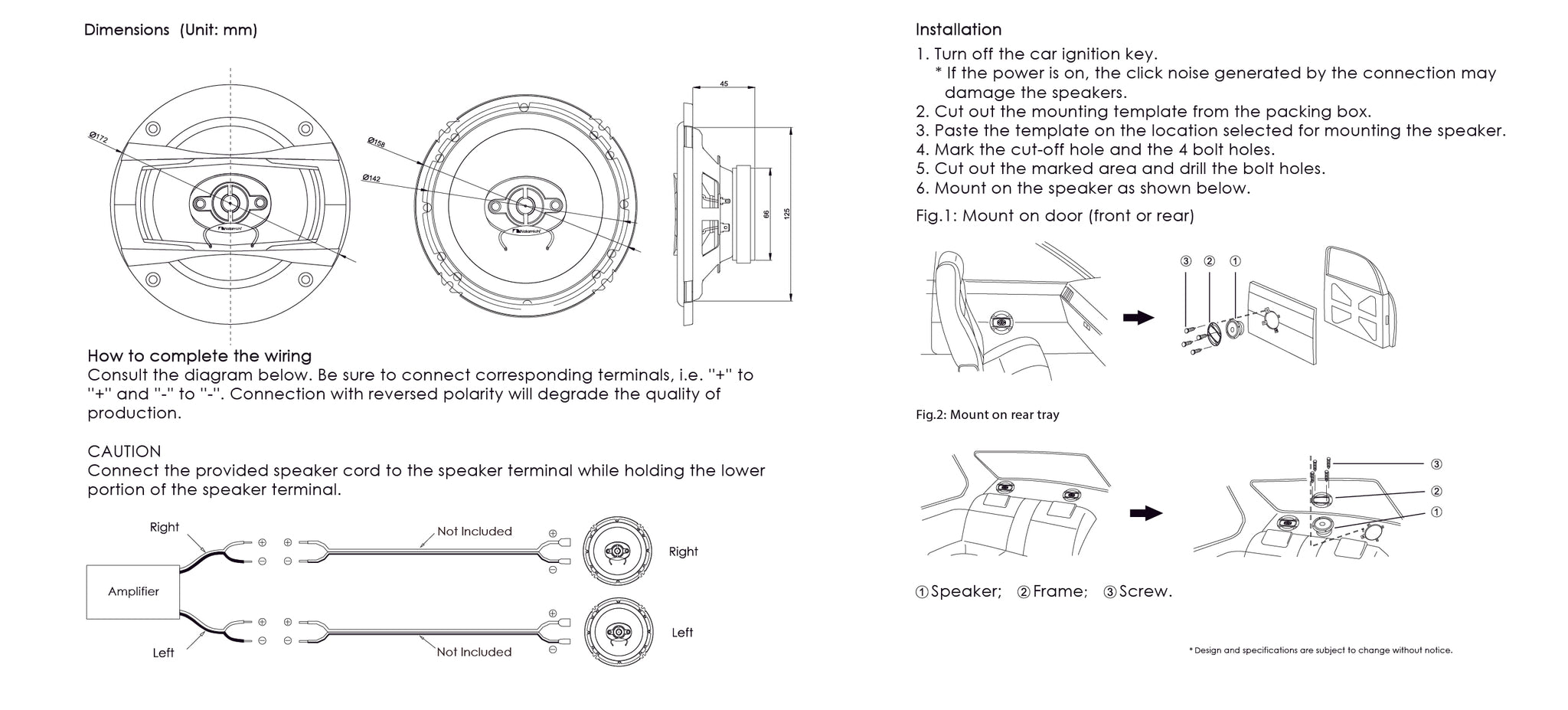

  2. Installation Manual x 1pc
  3. Frame x 2prs
  4. Screw (Φ4x20mm) x 16pcs

Downloads

NSE-1617 User Manual
